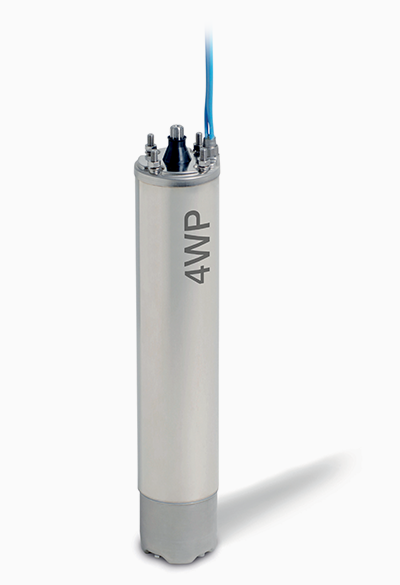

4WP SERIES
4” ENCAPSULATED SUBMERSIBLE MOTOR

Loghi certificazioni

Technical features
• Encapsulated resin filled stator.
• Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap .
• Motor case: SS 304.
• Motor shaft: SS 304.
• Shaft end and Coupling: NEMA Standard.
• Kingsbury thrust bearing.
• Winding: enameled copper – Class F insulation.
• Degree of protection: IP68/Class B insulation.
• Max temp. 35° with water cooling flow min. 0.08 m/s.
• Max depht immersion: 150 m.
• Nos. of start per hour: max 30 at regular intervals.
• Labyrinth seal, sand slinger and lip seal.
• Coolant: water and propylene glycol.
• Motor cable length: 1,75 to 4 m according to motor size (3 wires plus ground).
• Voltage variation: +6 / -10%.
• Single phase motor available in both version CSCR & PSC.
• Suitable for horizontal operation.



Motor range versions:
• Single Phase: 0.37kW (0.5hp) to 4kW (5.5hp), 220-230V / 50Hz (or 60 Hz).
• Three Phase: 0.37kW (0.5hp) to 7.5kW (10hp), 380-415V / 50Hz – 460V / 60Hz.
• Axial thrust: – 1500 N from 0.37kW to 0.75kW – 3000 N from 1.1kW to 2.2kW – 6500 N from 3kW to 7.5kW.
Other voltage and frequencies available upon request.

Foto tabella 4wp - tabella1
Foto tabella 4wp- tabella2

Download here the 4WP SERIES 4” ENCAPSULATED SUBMERSIBLE MOTOR catalog.
