CONTROL BOX

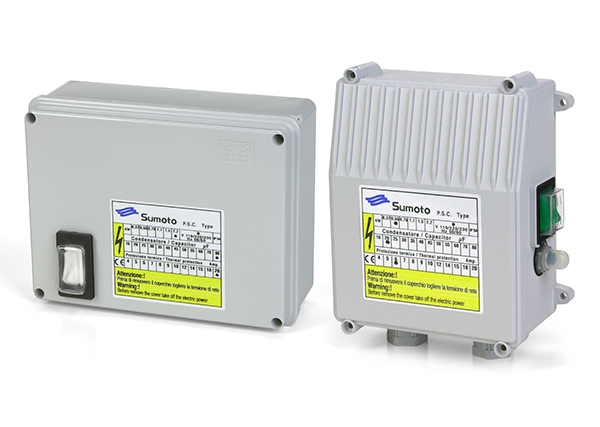

PSC SERIES

TECHNICAL FEATURES

• Enclosure made out of ABS.

• Switch on-off.

• Thermal protection with manual reset.

• Running capacitor.

• Cable glands.

• Range: from 0.37kW to 2.2kW.

PSC A Series Dimensions: 180 x 150 x 70 mm.

PSC B Series Dimensions: 195 x 150 x 80 mm.

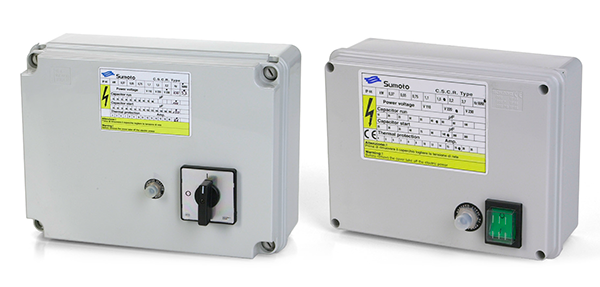

CSCR SERIES

TECHNICAL FEATURES
• Enclosure made out of ABS.
• Switch on-off.
• Thermal protection with manual reset.
• Starting capacitor and running capacitor.
• Potential starting relay.
• Cable glands.
• Lightning arrestor.
• Range: from 0.37kW to 2.2kW.

CSCR A Series Dimensions: 195 x 150 x 80 mm.
CSCR B Series Dimensions: 240 x 190 x 90 mm.

CSCR 3.7Kw Series:

• Double starting capacitor and double running capacitor
• Range: 3.7kW
• Dimensions: 310 x 230 x 150 mm.
